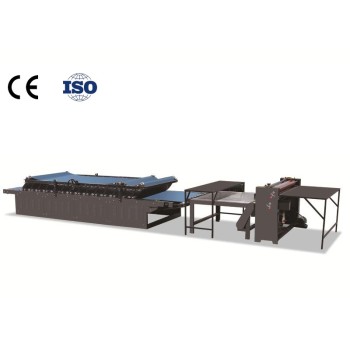

Manual laminating machine, laminating machine 1300 corrugated board laminating machine series Semi-auto corrugated cardboard flute lamina

group name: Fully automatic flute laminating machine

Min Order: 1 piece

brand name: Jumbo Corrugated Machinery Solution

model: 1300

Nearest port for product export: Tianjin

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: PayPal, Westem Union

update time: Sat, 09 Oct 2021 15:51:07 GMT

contact supplier

Paramtents

color black
Mechanical speed 0-40m/min
Maximum board size 1300x1300MM
Minimum board size 200X200MM
power 4.5KW
The whole machine size 9m x 1.95m x 1.1m
The weight of the 1500KG

Packging & Delivery

Min Order1 piece

Briefing

Manual feed corrugated paper,cardboard,cardboard automatic glue replenishment system, can automatically replenish the glue loss

Detailed

series Semi-auto corrugated cardboard flute lamina

Manual delivery of corrugated paper, cardboard, cardboard

Automatic glue replenishment system, can automatically replenish the lost glue amount, and with the glue recycling;

The linear speed of the measuring roller is scientifically designed, and the glue quantity is uniform at the same time, so as to avoid the glue dumping at high speed.

Independent water tank control water circulation mode, ensure the back of the backing paper dry, while cleaning the rubber roller, glue groove, glue groove;

Manual mounting paper work, precision controllable

The floating movable press ensures that the corrugated paper will not be flattened after mounting, and at the same time keeps the cardboard flat and straight

技术参数

model	1300C	1600C
Mechanical speed	0-40m/min	0-40m/min
Maximum board size	1300x1300MM	1600X1300MM
Minimum board size	200X200MM	200X200MM
power	4.5KW	4.5KW
The whole machine size	9m x 1.95m x 1.1m	9m x 2.25m x 1.1m
The weight of the	1500KG	1700KG
