Model 1424 is used for die-cutting of carton printing machine Flexo printer slotting machine Automatic slotting die cutting machine for printer

Model 1424 is used for die-cutting of carton printing machine Flexo printer slotting machine Automatic slotting die cutting machine for printer
Model 1424 is used for die-cutting of carton printing machine Flexo printer slotting machine Automatic slotting die cutting machine for printerModel 1424 is used for die-cutting of carton printing machine Flexo printer slotting machine Automatic slotting die cutting machine for printerModel 1424 is used for die-cutting of carton printing machine Flexo printer slotting machine Automatic slotting die cutting machine for printerModel 1424 is used for die-cutting of carton printing machine Flexo printer slotting machine Automatic slotting die cutting machine for printer
group name
Printing machinery
Min Order
1 piece
brand name
Jumbo Corrugated Machinery Solution
model
1628
Nearest port for product export
Tianjin
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW
Acceptable payment methods
PayPal, Westem Union
update time
Sat, 09 Oct 2021 15:33:50 GMT

Paramtents

  • color golden

  • Maximum speed (piece/min) 180

  • Paper feeding precision (mm) ±1.0

  • Maximum feed size (mm) 1600x2900

  • Minimum feed size (mm) 450x600

  • Size of drawing paper (mm) 2000x2900

  • Maximum printing area (mm) 1600x2800

  • Printing set (mm) ±0.5

  • Thickness of standard printing plate (mm) 7.2mm

  • Minimum slotting interval (mm) Positive knife 130x130

  • Minimum slotting interval (mm) Scalpel 230x65

  • Maximum groove depth (mm) 400

  • Slotting accuracy (mm) ±1.5

  • Die cutting precision (mm) ±1.0

Packging & Delivery

  • Min Order1 piece

Briefing

· The whole machine is designed and manufactured according to high requirements, reliable and safe.
· Auto-zero, auto-zero.

Detailed

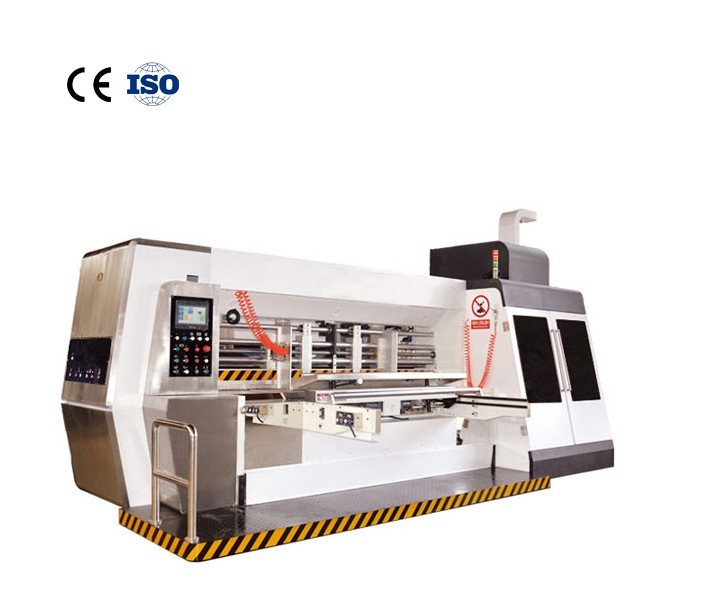

Automatic slotting die cutting machine for printer



Main featrues:

· The whole machine is designed and manufactured according to high requirements, reliability and safety.

· Select high-quality materials and accessories. All driving roller materials are made of high-quality steel, hard chrome plated and ground.

· Each unit fixed unit adopts vacuum adsorption conveying device, and the printing unit adopts servo control coloring to realize high-precision precision printing.

· The whole machine adopts touch screen PLC control, which can store and recall the created order data. Changing orders is faster and easier to operate.

· Remote detection of faults over the network to quickly eliminate equipment failures.

· Automatic zero reset, automatic reset.

• Adjust the gap between the conveyor roller, embossing roller and anilox roller by computer control.

· Paper dust central collection system.


Paper feeding unit:

• Paper can be fed continuously or separately (with counter).

· Feed paper with the leading edge roller to adjust the paper feed stroke and reduce the pressure of the paper feed roller.

· The leading edge feeds the paper to increase the suction flow, and the paper feeding is more stable and accurate.

• Variable frequency controls vacuum flow and pressure to match board size.

· The paper-feeding rubber roller is double-layer glue, the inner layer is soft and the outer layer is hard, which not only maintains the elasticity of the inner layer but also ensures the wear resistance of the surface, reducing the flattening and feeding of the cardboard.

· Dust removal device: Brush and fan remove paper scraps from the cardboard surface. Multiple fans are directly pumped with multiple rows of electrostatic brushes and rotating round brushes to maximize the dust on the cardboard surface.

· Pull paper roller gap, left and right paperboard position, computer control adjustment.

· Speed ​​up the setting speed before and after the electric control of the back tray.


Printing unit:

· Reel hanging version, 360 degree locking device, making the hanging version easy to operate and accurate.

· Quickly change the version and quickly correct the tilt error generated during the setting to reach the correction range.

· High-precision transmission of vacuum adsorption throughout the whole process, high precision of overprinting.

· The printing unit is widened to help the ink dry and ensure the overprinting accuracy (optional drying system).

· The printing roller phase is driven by servo motor and matched with Endat high-precision encoder to ensure the control precision of the servo rotation system. The color system is directly connected to the servo, which is fast in response and high in precision.

· Horizontal phase, computer and electric digital control.

· Imported brand scraper ink supply system: the main body of the ink chamber is non-metallic, the material is never rusted, easy to clean; the blade is replaced quickly.

· Automatically switch the cleaning device to make the ink recovery more thorough; save ink and ink. Ink can save ink every time when changing color or cleaning 0.4 0.5 kg


Slotting device:

· Pre-pressure roller device: electric connecting rod slotting, pressing line and pre-pressing are completed once.

· Electric adjustment of the length, width, height and folding of the carton, digital display.

• Manually adjust the pressure of the pressure roller and the dial shows the adjustment value.

· Slotting knife thickness 7mm, alloy steel material, tortuous heat treatment toothed grinding, sharp edges, high precision.

The slotted phase is adjusted by a computer electric value of 360 degrees.

· Add a hand hole mold base.

• The chain control switch is installed in the slotted section to achieve an emergency stop, stop or resume paper feed


Die cutting unit:

· Servo motor drive ensures less vibration of the printing unit and more accurate printing.

• The pad roller compensation is driven by an independent motor to control the speed of the pad roller. The compensation range is ±3.5mm, which keeps the pad roller and die roll speed consistent.

· The rubber roller mechanical spiral reverse 50mm swimming device improves the service life of the rubber pad.

Horizontal phase, computer and electronic digital control with a control range of ±10mm.

• Die-cut phase adjustment is driven by the PLC servo.

• The rubber pad roller cuts the flat structure to keep the rubber pad surface flat.
