Double Sheets Folder Gluer machine for corrugated production line

group name: Corrugating Glue Machine

Min Order: 1 piece

brand name: Jumbo Corrugated Machinery Solution

model: GM-30

Nearest port for product export: Tianjin

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: PayPal, Westem Union

update time: Sat, 18 Sep 2021 08:38:37 GMT

contact supplier

Paramtents

Effective width 1800mm
Working speed 150m/min
Gas supply system 0.4—0.6Mpa
Preheat cylinder temperature range 150—200℃
Steam pressure 0.8—1.2Mpa

Packging & Delivery

Min Order1 piece

Briefing

Double Sheets Folder Gluer is Suitable for folding & glue paperboard, Easy operation, Perfect for carton macking factory.

Detailed

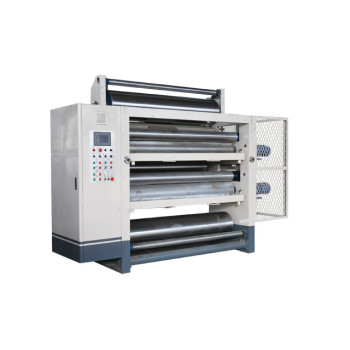

Automatic double glue machine

Structural features

After the surface of cots is adjusted and tempered, the inner hole is processed, the dynamic balance surface is polished and there are 32 lines of concave net pattern, the glue is uniform and the amount of glue consumption is less.

The rotation of the cots is controlled by the variable frequency motor and frequency conversion, and the frequency control ensures that the linear speed of the cots is synchronized with the two sides, and it can operate independently.

Coating electric adjustment glue amount of digital display. Automatic circulation of glue, can effectively control the amount of glue, avoid glue precipitation, ensure good glue and save glue.

All roller surfaces are ground after hard chromium plating.

The speed signal of double-sided machine is measured to realize synchronous operation with it. The rubber coating machine is displayed with man-machine interface, which can be used for data setting and easy to operate.

Electrical design, construction production process, follow the national standards, low failure rate, easy maintenance。

Technical parameter

Effective width：1800mm

Operation direction：left or right（determined in accordance with customer plant）

Design speed：150m/min

Gas supply system：0.4—0.6Mpa

Preheat cylinder temperature range：150—200℃

Steam pressure:0.8—1.2Mpa

Roller diameter parameter

Glue roller diameter：￠269mm

Doctor roller diameter：￠142mm

Over the paper roll diameter：￠110mm

Powered motor parameters

Glue roller initiative frequency motor：3KW

Sizing Reducer:：250W

Pressure roller clearance adjustment motor：

Glue pump motor：2.2KW
